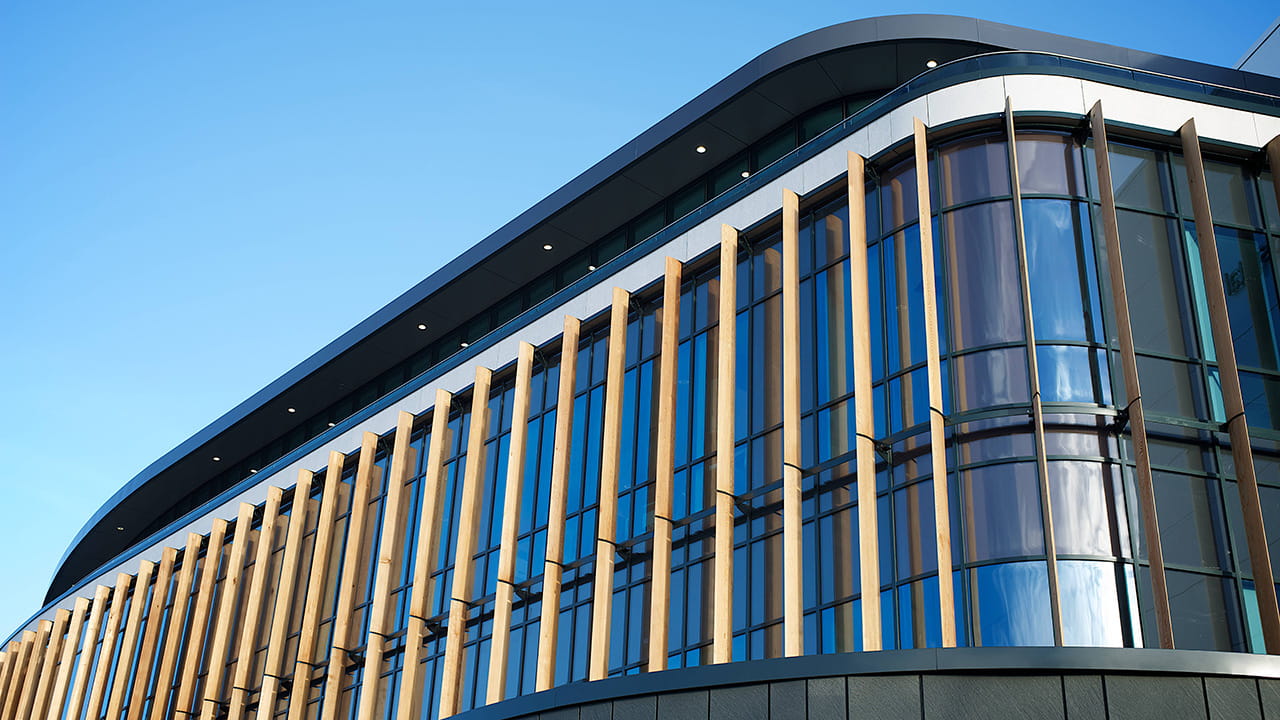

Spire Hospital, Manchester, United Kingdom
The newly built Spire Hospital on the Siemens UK campus is designed to make a key contribution towards reviving Manchester’s previous pioneering role in the fields of science, innovation and medical excellence. Very stringent sustainability criteria were applied to the new building, which was designed as an international hub and cost £65 million. Against the backdrop of minimising energy consumption and CO2 emissions, the architects went for roofs and walls covered in wild flowers, as well as solar panels and high-performance window construction. The insulbar® insulating bars used in the KAWNEER window systems stand out for their low thermal conduction capacity and thereby contribute to conservation of energy, as well as saving on heating and cooling costs.
© Christian Smith
House M, Grünwald near Munich, Germany
With its cubic shapes, the house stands out from the exclusive residences built in other styles in the south of Munich. The newly constructed building of natural grey stone is embedded in a steep slope and progresses in a staggered z-formation up the hillside. Staircases link the two storeys between the entry point at the level of the street and the residential level. The living area has large glass panes with a view of the patio and garden. When it comes to light direction, the architect has used highly-insulated window and sliding systems from Sky-Frame, which are equipped with insulbar insulating profiles.
Photo: Sky-Frame AG
Architecture: Titus Bernhard, Germany
Photography: Jens Weber & Orla Connolly, Germany
Villa, Utrecht, the Netherlands
During the modification of the villa, the following two objectives have been achieved in an impressive manner: the task was to preserve the historic character of the house and simultaneously create a climate-neutral building. The sophisticated energy concept is based - among other things - on a heat pump, geothermal energy and ground and solar collectors. In addition, the historic wooden windows have in some cases been equipped with additional windows inside and given additional glazing externally. In the extension to the rear of the house, room-high window façades were used which free up the view of the garden. Sky-Frame window systems, equipped with insulbar insulating profiles, enable efficient thermal insulation and make their contribution to the overall concept of energy neutrality. The result is the first climate-neutral house in the Netherlands.
Photo: Sky-Frame AG
Architecture: Zecc Architects BV, Utrecht, the Netherlands
Photography: Cornbread Works, the Netherlands
Vitra House, Weil am Rhein, Germany
In the Vitra house, design and architecture aficionados can admire and enjoy the Vitra classics on a total of five storeys. 12 gabled houses stacked on top of each other merge into one and give the showroom space to present its Home Collection. Situated directly next to the Vitra Museum on the campus of the same name, the building’s structure captivates the onlooker with its fully glazed gable ends. The façade systems were designed by Sky-Frame, with the manufacturer choosing insulbar insulating profiles to ensure perfect thermal insulation.
Photo: Sky-Frame AG
Architecture: Herzog & de Meuron, Switzerland
Photography: Tom Bisig, Switzerland
Dwelling house, Freundorf near Vienna, Austria
One house, one colour - inside and out. In the sculptured villa the architects opted for brilliant white and an unusual use of forms. The detached house, embedded in a hillside plot, consists of two offset structures with an overhanging roof. Room-high glazing gives a lightness to the reinforced concrete construction. The frameless sliding windows from Swiss manufacturer Sky-Frame make this exceptional architecture possible. Equipped with insulbar insulating bars, the windows boast optimum thermal insulation.
Photo: Sky-Frame AG
Architecture: project A.01 architects, Austria
Photography: Brigida González, Germany
Lake House, Wörthersee, Austria
Closed towards the road but transparent on the lake side – this is the form taken by the lake house by the Wörthersee lake. The sculptured roof and large glass panels give the villa with its boathouse a futuristic quality. Wall-high picture glazing - including fly screens - open up the view of the garden and the Wörthersee. Sliding windows from Sky-Frame equipped with insulbar profiles ensure efficient thermal insulation; most of the windows incorporate an electric opening mechanism.
Photo: Sky-Frame AG
Architecture: Project A01 architects, Maria Planegger, Austria
Photography: Brigida González, Germany

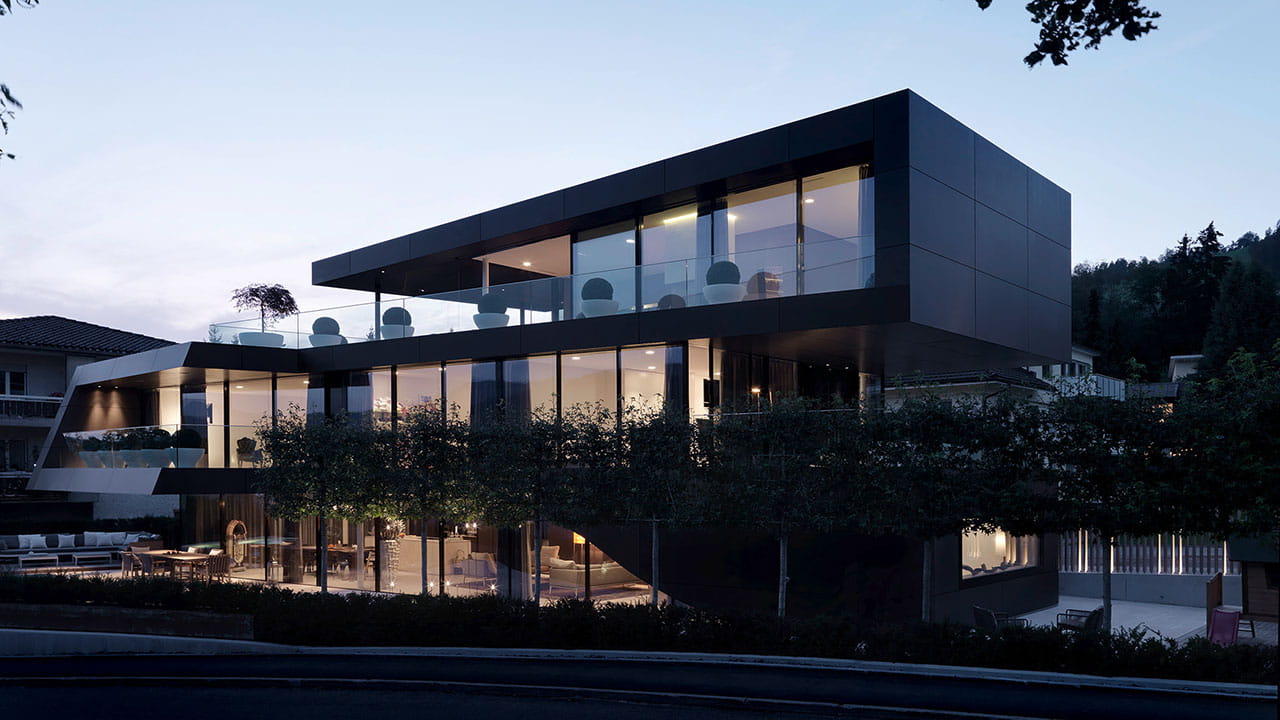

Onstage, Switzerland
In this exclusive residence, situated on a hillside and boasting a lake view that should never be obstructed, the architects used large window façades. The frameless window systems from Sky-Frame thus become a fascinating design element in this detached house. They allow the rooms to be flooded with light and open up a superb view of the lake. Optimum thermal insulation of the window and sliding systems is provided by insulbar insulating profiles.
Photo: Sky-Frame AG
Architecture: SimmenGroup, Switzerland
Photography: Bruno Helbling, Switzerland
House G, Ammersee, Germany
The floor-to-ceiling, frameless sliding windows from Sky-Frame in the mansion by the Ammersee lake do not simply provide an aesthetic quality. As well as enabling smooth transitions between the building and nature, they maximise the view of the Ammersee and additionally protect against burglary. When the sliding windows are open, the ground floor and patio plus pool merge into one. The manufacturer used insulbar insulating profiles for thermal separation in its design for the window and façade systems.
Photo: Sky-Frame AG
Architecture: ATP Sphere GmbH, Innsbruck
Photography: Brigida González, Germany

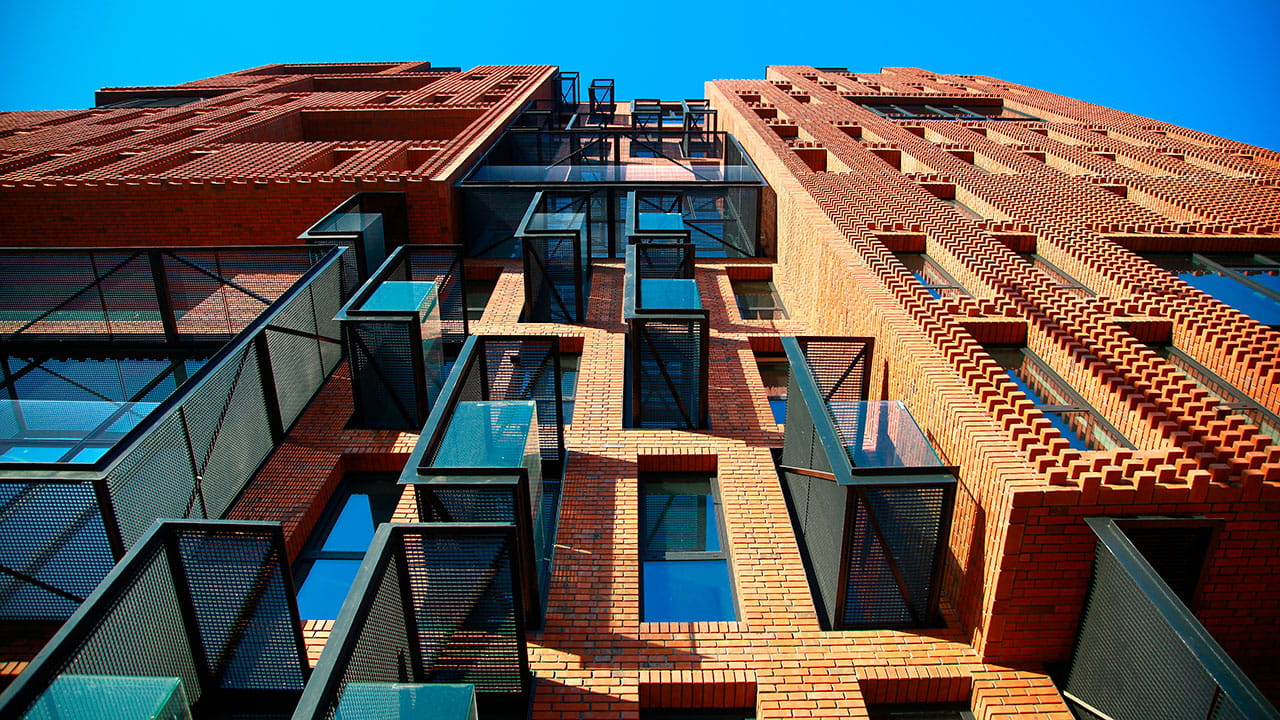

Red Apple, Sofia, Bulgaria
The award-winning design by the architects is based on the vision of constructing new flats in the style of New York lofts. The idea was to create a comfortable residential space out of an old, abandoned factory building. Since no disused factory was available, however, the architects had to give the new building an artificial patina. By using clinker bricks they created a new building with an old-style exterior. The Red Apple façade consists of Reynaers systems, with insulbar insulating profiles providing optimum thermal insulation.
Credit: architect/photo: AEDES Studio – Plamen Bratkov
Source: Reynaers Aluminium
Aquamarine business centre, Moscow, Russia
The Aquamarine III Business Centre, comprising four buildings, extends over 78 000 square metres. Situated right by the Yauza river in one of the best parts of Moscow, the business centre is intended to exude some of Venice’s charm. Huge picture windows provide an impressive view and allow the rooms to be flooded with sunlight. In addition to offices, the centre also includes a hotel and residential accommodation. The architects designed the complex with Reynaers façade and window systems which incorporate insulbar insulating bars for thermal separation.
Credit: architect: Speech
Photo: Ilia Ivanov, source: Reynaers Aluminium

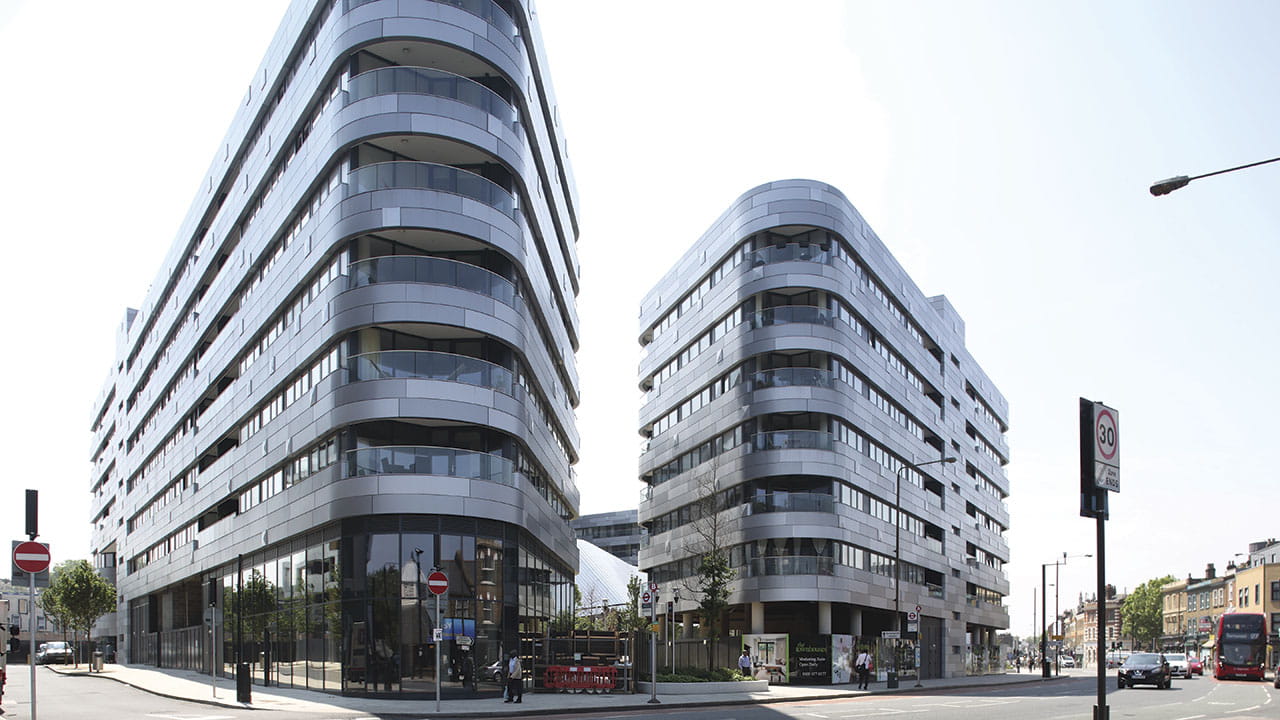

Greenwich Square, London, United Kingdom
Greenwich Square, in South East London, provides space for numerous everyday facilities and amenities. The three blocks - Public Square, Courtyard and Garden Court - comprise living accommodation but also numerous public facilities such as restaurants, shops and a leisure centre. The window and door systems were designed by Reynaers, with the manufacturer choosing insulbar insulating profiles to ensure perfect thermal insulation.
http://www.greenwichsquare-london.com
Credit: architect: Make architects
Photo: Nick Short Photography, source: Reynaers Aluminium
Etopia Centre for Art and Technology, Saragossa, Spain
Etopia, the Centre for Art and Technology, was constructed on the former world exhibition site in the Spanish city of Sarragossa. The modular design consists of three blocks connected by means of a plinth. Etopia is part of the digital mile (La Milla Digital) and is directly linked via a suspension bridge to the station for the “Delicias” high-speed train. In its capacity as a meeting place, Etopia succeeds in combining what appear to be opposites: industry, research and creativity are united under one roof. This expressive building complex uses Reynaers window systems with insulbar insulating profiles for the thermal separation of the aluminium inner and outer shells.
http://www.zaragoza.es/ciudad/etopia
Credit architect: MCBAD/Colomer Dumont,
Photo: © Wenzel, source: Reynaers Aluminium
FAZ editorial office, Bonn, Germany
The Frankfurter Allgemeine Zeitung is one of Germany’s leading daily newspapers and the one with the highest circulation abroad. In the newly constructed editorial office in Bonn, insulbar insulating bars, as a component of Wicona windows, perform the task of thermal separation.
Picture courtesy: © Wicona/Conne van d Grachten
KLB Training and administration building, Ichenhausen, Germany
In KLB Kötztal Lacke + Beschichtungen GmbH’s new training and administration building, the use of insulbar thermal insulating bars is making it possible to avoid energy and heat losses, reduce energy consumption and save on heating costs.
Picture courtesy: © Wicona/Conne van d Grachten

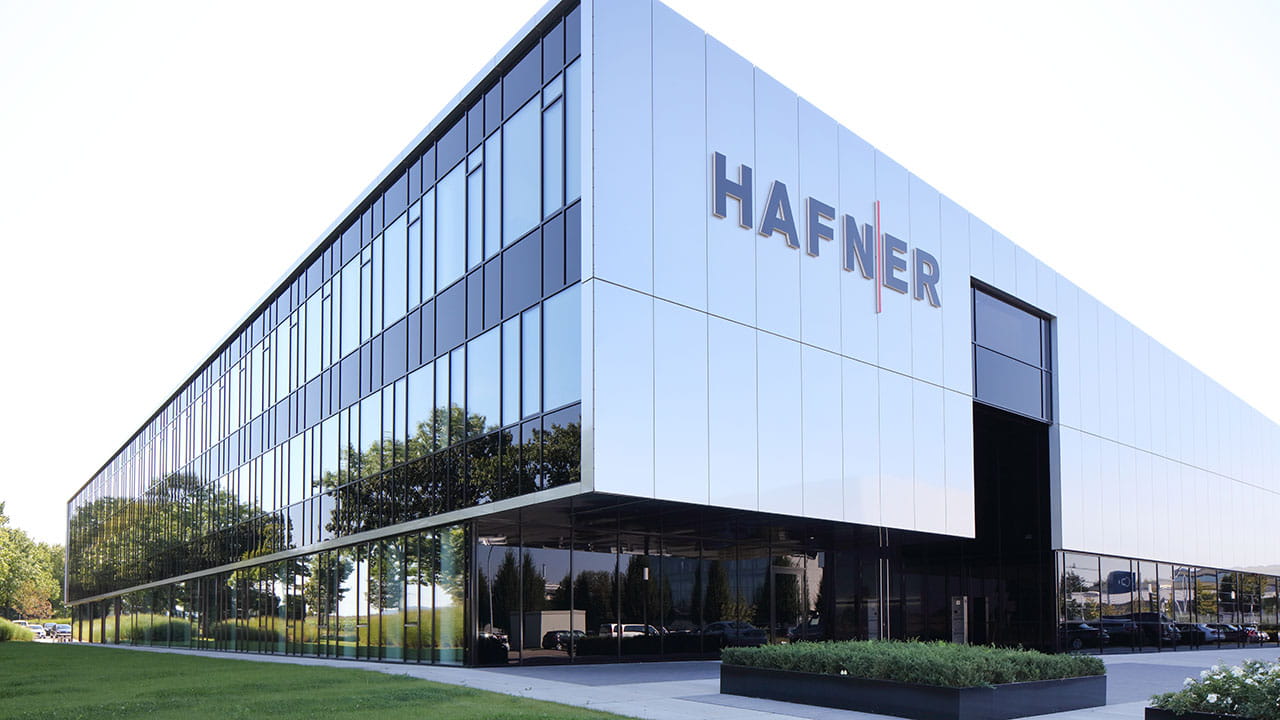

Hafner, Fellbach, Germany
Philipp Hafner GmbH & Co. KG’s new company building in Fellbach pools Sales & Distribution, Development and Production under one roof. insulbar insulating profiles, used in Wicona aluminium windows, ensure effective thermal insulation.
Picture courtesy: © Wicona/Conne van d Grachten
Administrative headquarters of LVA Brandenburg, Frankfurt/Oder, Germany
Despite the building’s transparent design, profile technology from Schüco International provides the assurance of effective thermal protection: insulbar profiles prevent heat loss through the metal profiles.
Picture courtesy: Schüco International KG

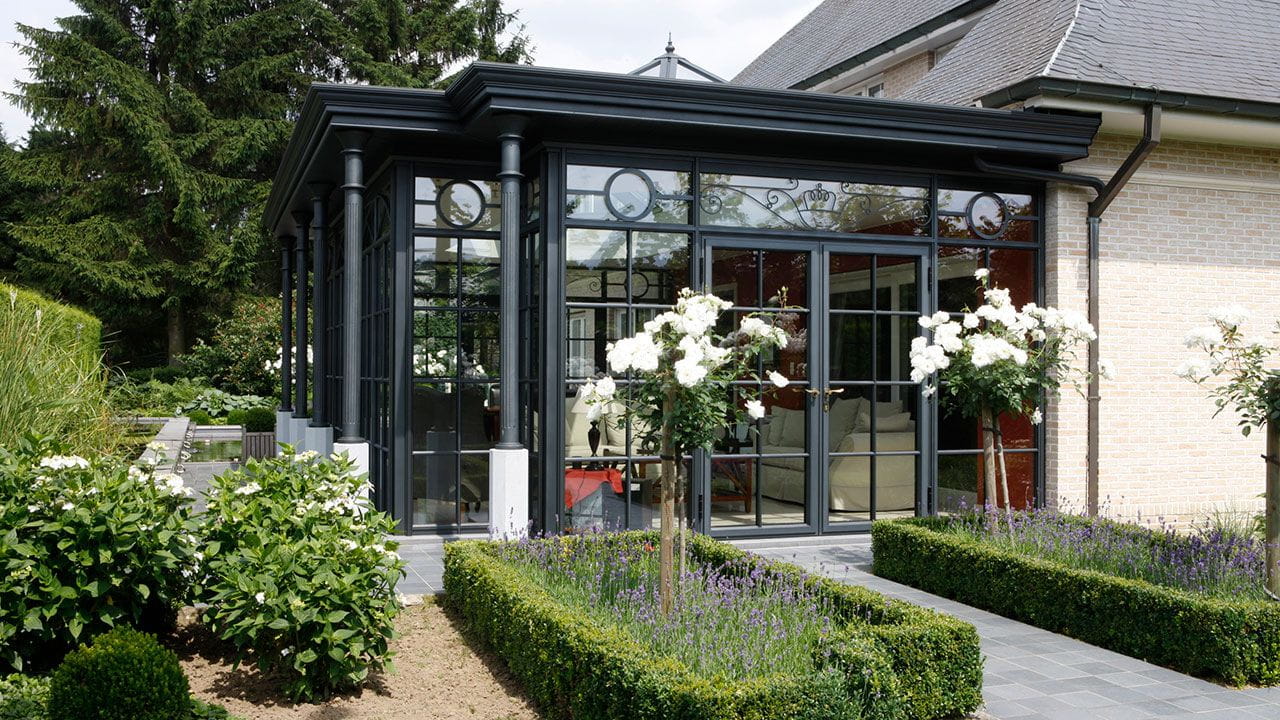

Elegant orangery, Gent, Belgium
The company Keller uses exclusively high-grade materials of exceptional quality in its conservatories – such as insulbar insulating profiles. This orangery is used as a place for social gatherings affording splendid views over the garden in summer and winter alike.
Picture courtesy: Keller AG, Luxembourg

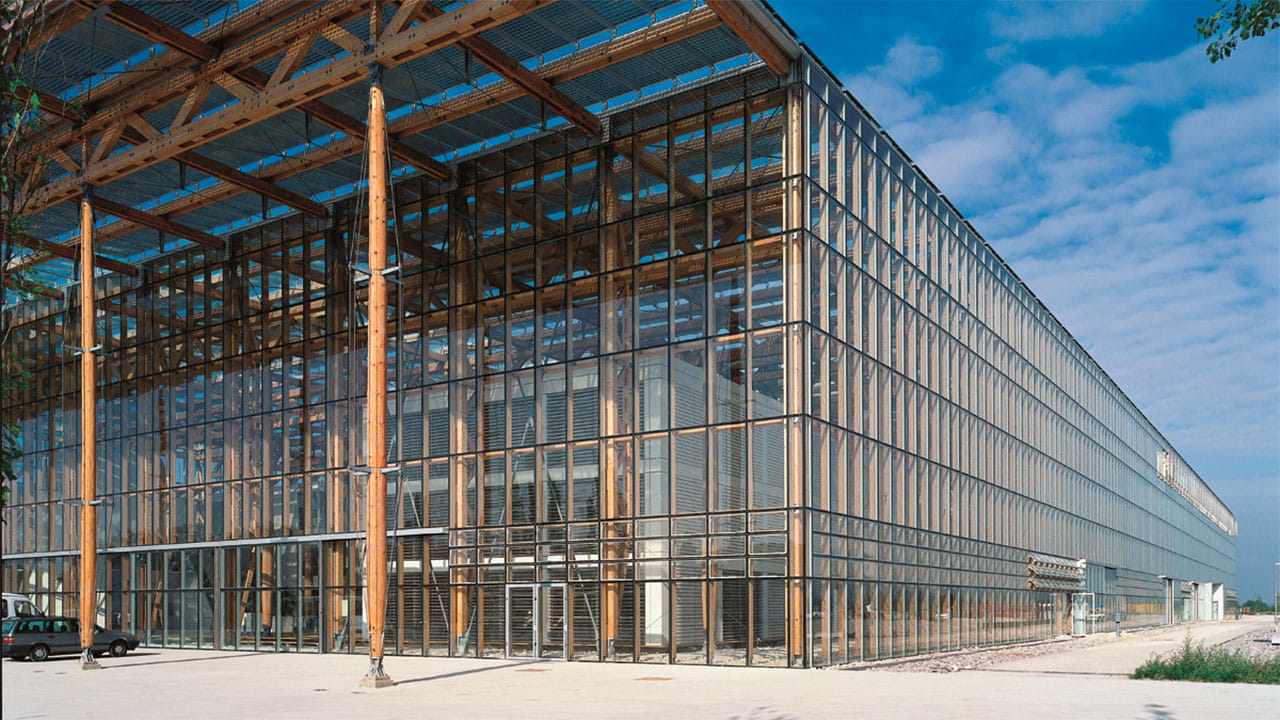

Training academy NRW Ministry of the Interior, Herne, Germany
The training academy of the NRW Ministry of the Interior boasts the world’s biggest photovoltaic roof. Wicona links utilization of solar energy with thermal insulation. The specially developed aluminium profiles are insulated using insulbar.
Picture courtesy: Wicona
Steibs Hof, Leipzig, Germany
A faithful reconstruction of the historical bay facade by Josef Gartner at Steibs Hof in Leipzig. insulbar was used here to insulate copper and aluminium profiles in a unit with outstanding static stability.
Picture courtesy: Josef Gartner GmbH

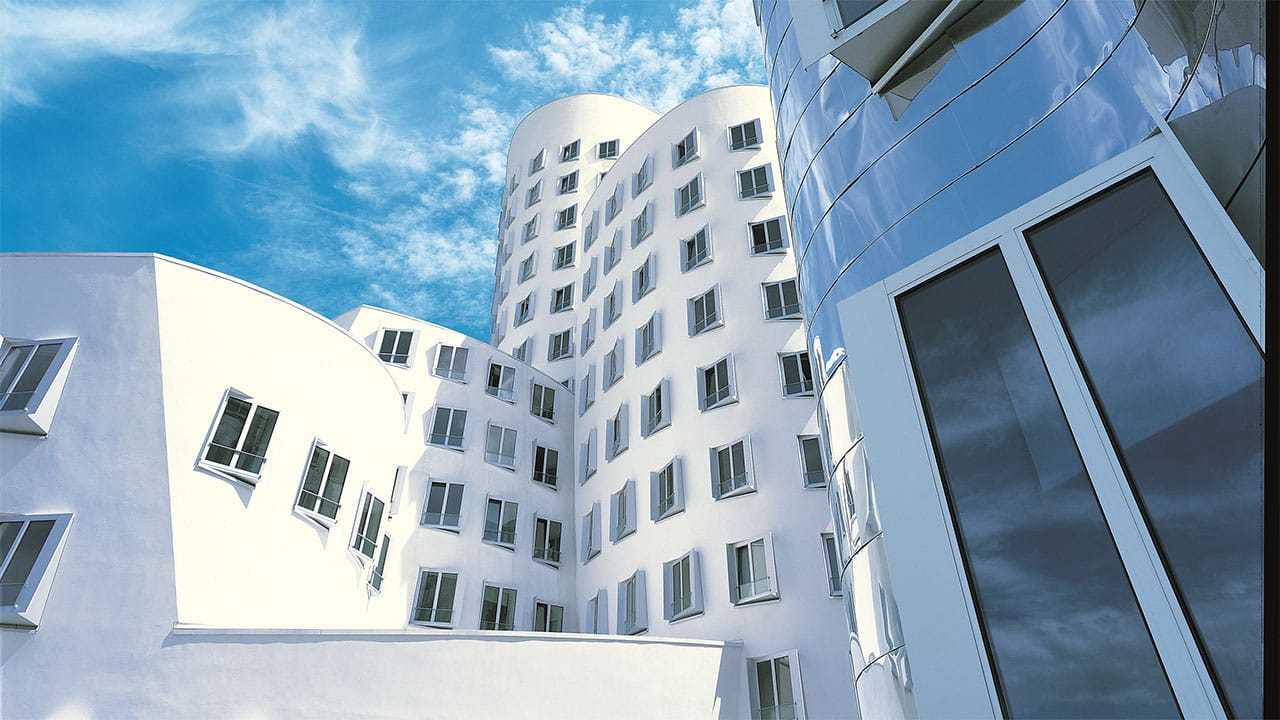

The „Neue Zollhof“ building, Rheinhafen Düsseldorf, Germany
Schüco International has achieved the perfect combination of functionality, appearance and design with optimum thermal insulation – using insulbar profiles from Ensinger.
Picture courtesy: Schüco International
British Embassy, Berlin, Germany
The special design of the Wicona element facade with its top-hung sash windows achieves excellent thermal insulation using insulbar profiles.
Picture courtesy: Wicona

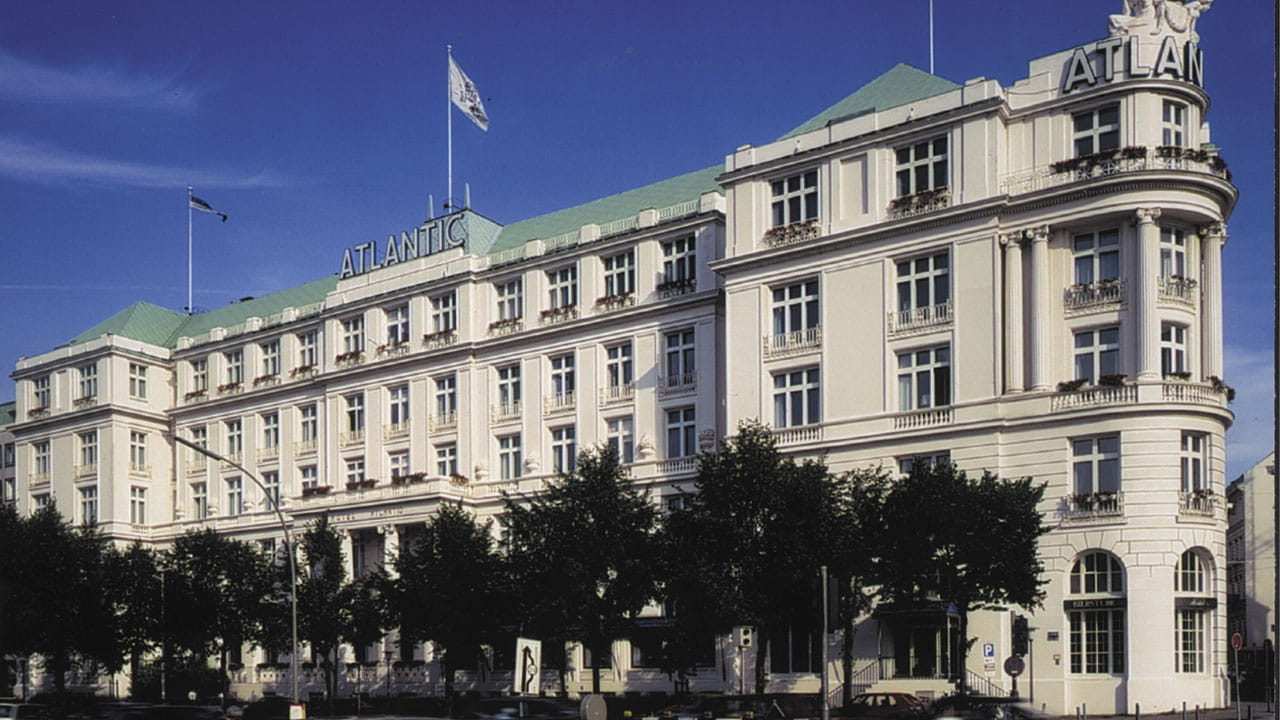

Hotel Atlantic, Alsterufer Hamburg, Germany
In this refurbished historic building, Eduard Hueck GmbH & Co. KG has recreated the look of the original wooden windows in aluminium. insulbar profiles fit flexibly and ideally into the various tilt, tilt and turn and double vent windows.
Picture courtesy: Eduard Hueck GmbH & Co. KG
Testo, Titisee, Germany
In the construction of its new company building, measuring equipment manufacturer Testo attached particular emphasis to the achievement of sustainability. To reduce the overall energy requirement of the building, a natural ventilation and lighting system was integrated. The use of windows from Wicona using insulbar profiles for thermal insulation played a decisive role in the success of the building’s design.
Picture courtesy: Wicona Germany

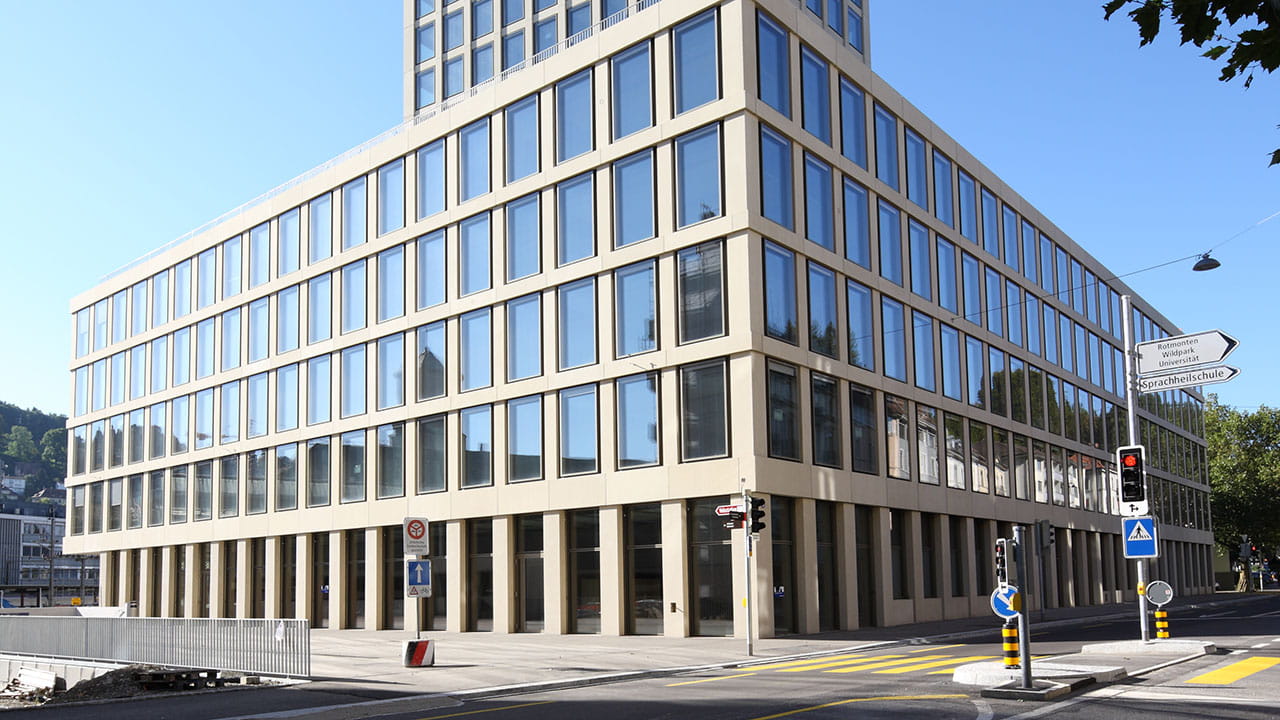

FHS, St. Gallen, St. Gallen, Switzerland
The new St. Gallen University of Applied Sciences building was inaugurated in July 2013. The 66 metre-high building in the centre of the town features a highly heat-insulating multiple chamber system constructed using insulbar profiles from Ensinger.
Picture courtesy: Wicona Germany
Södra Climate Arena, Vaxjö, Sweden
The new tennis hall in Växjö, Sweden, combines the materials wood, aluminium and glass in a sports complex which not only exudes visual appeal but also benefits from extreme energy efficiency. The complete building was designed in conformity with passive house standards. To ensure optimum thermal separation, which plays a vital role in Scandinavia due to the extremes of temperature, highly effective insulbar thermal insulating profiles were integrated in the Wicona façades.
Picture courtesy: Wicona Germany
Amber Expo, Danzig, Poland
The “Amber Expo” Trade Fair and Congress Centre in Danzig in Poland is one of Europe’s premier addresses for social, cultural, business and scientific events. Among the reasons for choosing the Wicona double facade system used for the building were its excellent thermal insulation properties, due in large part to the use of insulbar insulating profiles.
Picture courtesy: Wicona Germany
Mediterranean conservatory, Thonon-les-Bains, France
This Mediterranean conservatory from Keller AG provides the perfect backdrop for relaxation in style. Insulation using insulbar insulating profiles lends the structure a pleasant room atmosphere which allows it to be enjoyed as living space all year round.
Picture courtesy of: Keller AG, Luxembourg
Combined orangery and pool room, Linz, Austria
In this orangery, insulbar insulating bars ensure that the occupants benefit from a cosy atmosphere in winter while enjoying views over the pool and the landscape beyond.
Picture courtesy: Keller AG, Luxembourg

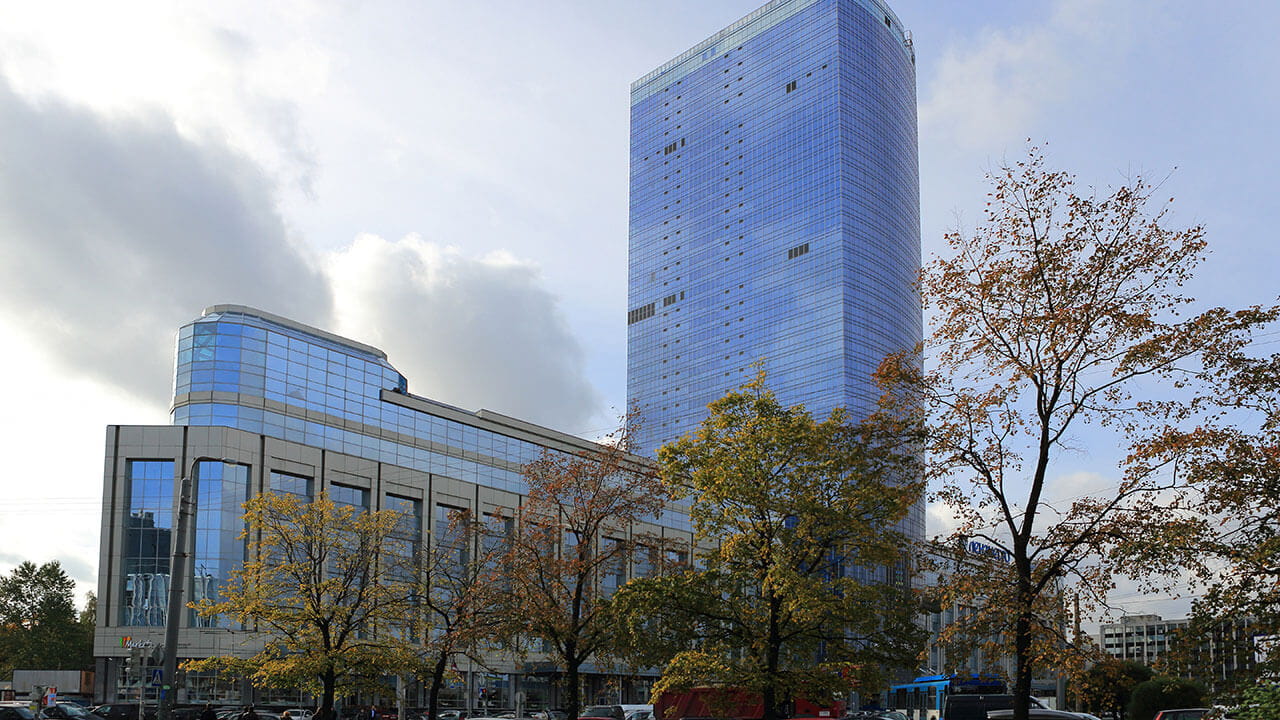

Leader Tower, St. Petersburg, Russia
The 140 m high Leader Tower owned by Leader Group LLC is the highest building in St. Petersburg. The element facade of the imposing office tower is based on Wicona systems and uses insulbar insulating profiles for efficient thermal insulation.
Picture courtesy: Wicona Germany
Hongqiao Lingkong Garden, Shanghai, China
Aluminium window systems from Wicona using insulbar thermal insulation profiles were installed in the office and commercial building Lingkong Garden in Shanghai.
Picture courtesy: Wicona Germany
Classical orangery, Vienna, Austria
The many generous glass surfaces of this classical orangery lend the structure a modern radiance. insulbar insulating profiles take care of a pleasant room climate and so allow the structure to be used all year round as a living space.
Picture courtesy: Keller AG, Luxembourg
Sunny conservatory, Genf, Switzerland
Keller AG insists on using insulbar insulating bars for the thermal separation of conservatories and orangeries, as illustrated by this sunny conservatory overlooking Lake Geneva.
Picture courtesy: Keller AG, Luxembourg
Hotel Lone, Rovinj, Croatia
Hotel Lone is a unique 5-star Design Hotel in Rovinj, Croatia conceived to create the ideal symbiosis between functionality, harmony and elegance in a modern design. Located directly next to the sea, the hotel receives top ratings. The window and door systems used in the complex were designed by Wicona and feature insulbar insulating profiles to guarantee optimum thermal insulation.
Picture courtesy: Wicona Germany
Combined conservatory and orangery, Luzern, Switzerland
This exciting combination of a classical orangery and ultra-modern conservatory was constructed by Keller AG. Making a substantial contribution to efficient thermal separation: insulbar insulating profiles.
Picture courtesy: Keller AG, Luxembourg

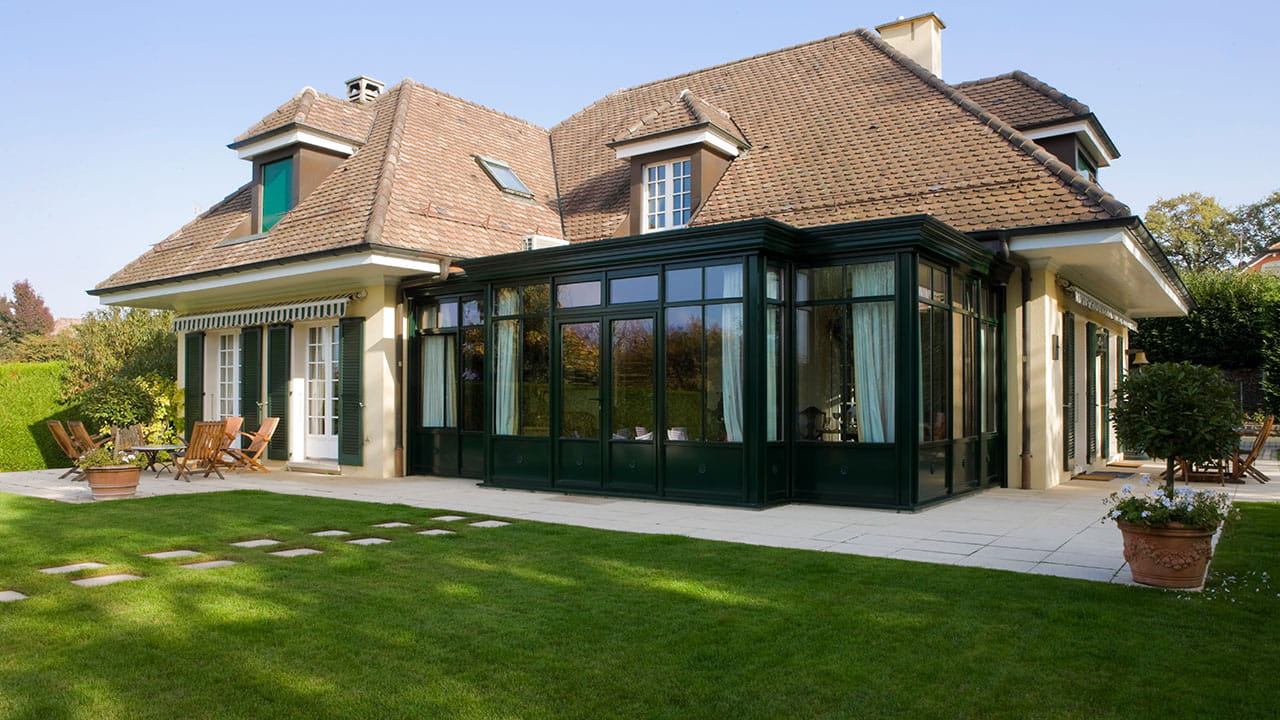

Cosy conservatory, Cologny, Switzerland
This sunny conservatory is used all year round as a fully functional living space, making effective thermal separation particularly vital. insulbar insulating profiles in the aluminium frames take care of perfect insulation and a pleasant room climate.
Picture courtesy: Keller AG, Luxembourg
Luxurious indoor pool, Wels, Austria
When constructing this luxury indoor pool with its enormous sliding doors, Keller AG provided optimum thermal separation with the aid of insulbar insulating bars.
Picture courtesy: Keller AG, Luxembourg

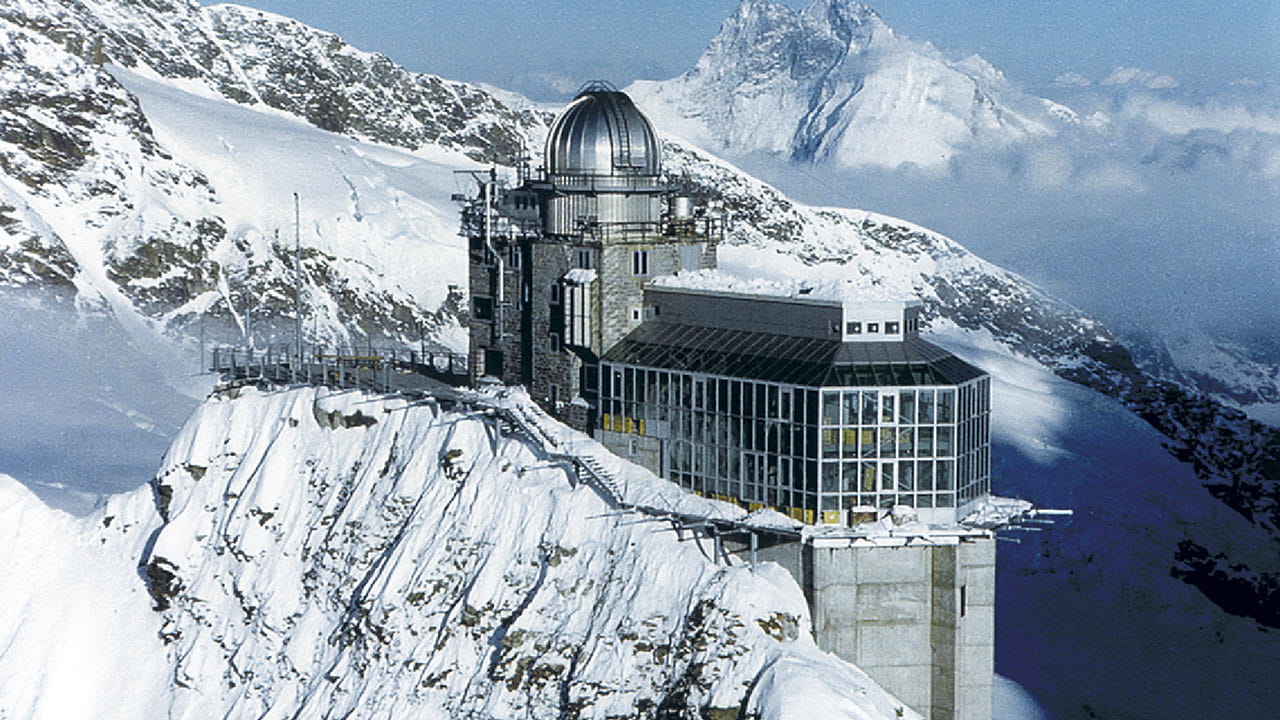

Mountain-top restaurant, Jungfraujoch, Switzerland
insulbar profiles for Schmidlin AG, Switzerland. In the mountain restaurant “Sphinx” atop the Jungfraujoch, the highly stable material Tecatherm used in the insulbar profile has been thoroughly proven at an altitude of 3,450 m at temperatures as low as - 30°C and wind speeds of up to 250 km/h.
Picture courtesy: Schüco International KG
Conservatory Italian country house, Bergamo, Italy
This unusual conservatory built onto an Italian country house allows the occupants to enjoy life with all their senses. insulbar insulating profiles form part of this perfectly blended ensemble by Keller AG.
Picture courtesy: Keller AG, Luxembourg
Chalet conservatory, Tyrol, Austria
This conservatory affords the chalet occupants breath-taking views over the lush green mountain scenery in summer and over snowy landscapes in winter, sometimes metres thick. Thanks to excellent thermal insulation, due in large part to the use of insulbar insulating bars, the conservatory is fully usable even on the coldest days.
Picture courtesy of: Keller AG, Luxembourg

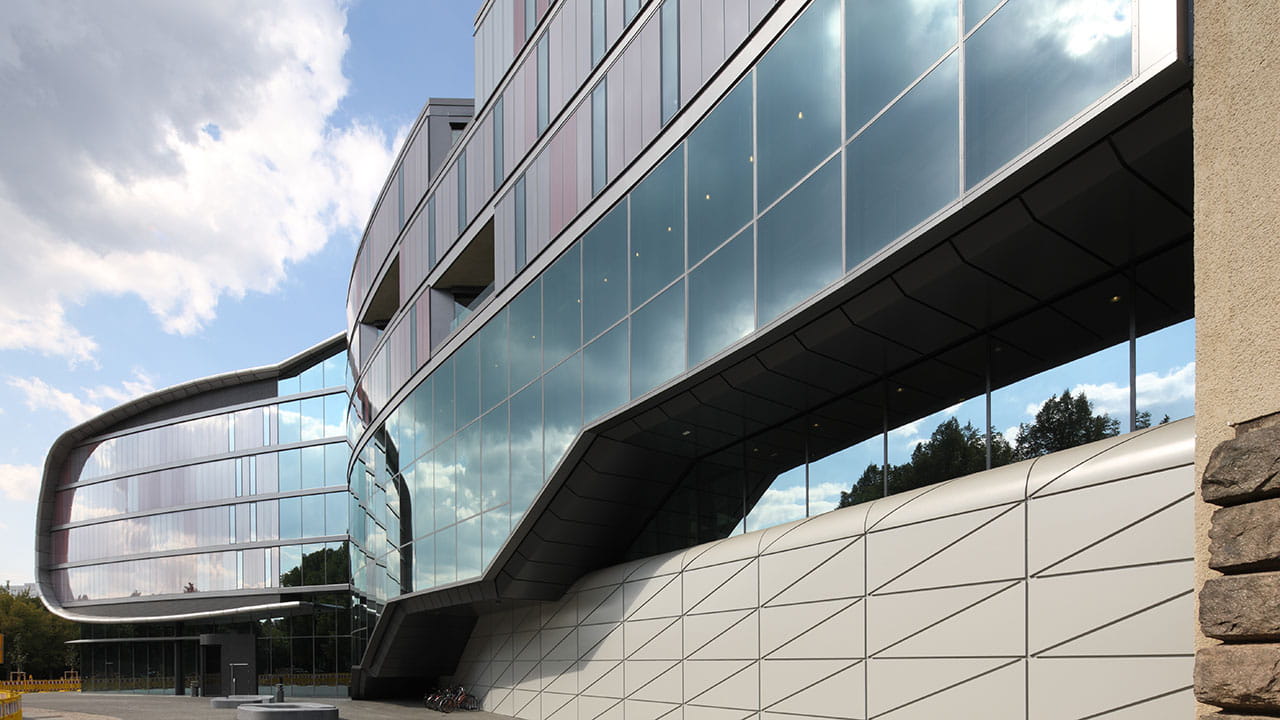

German National Library, Leipzig, Germany
The fourth extension of the German National Library in Leipzig closes the gap between the magnificent main building and the book tower, drawing it together into a complete ensemble. The complex aluminium facades of this highly regarded cultural centre are based on WICONA systems, with high-insulating insulbar profiles providing optimum thermal insulation of the façades.
Picture courtesy of: WICONA Germany
Talan Towers, Astana, Kasakhstan
Talan Towers project is the first high-end mixed-use development in Astana. It aims to create a new level of lifestyle and luxury experience in the capital of Kazakhstan. Metal Yapi A.S., one of the top curtain wall companies of Europe, preferred insulbar insulating profiles for this ambitious project.
Architects: SOM (Skidmore, Owings & Merrill LLP)
Gross buildable area of Talan Towers: 120.000 sqm
Amount of capital invested: $350.000.000
http://talantowers.com/about-project/general-info/
Splendid orangery, Vincenza, Italy
This architectural gem is used as a space for relaxation and social gatherings, and is either air conditioned or heated all year round. Not a problem thanks to efficient thermal separation using insulbar insulating profiles.
Picture courtesy: Keller AG, Luxembourg
Stylish windmill, Retz, Austria
Thanks to the delicate, frameless sliding windows from Sky-Frame it is difficult to say where the view begins and the room interior ends. For thermal separation the Swiss manufacturer relies on insulbar insulating profiles.
Picture courtesy: Sky-Frame AG
Western Window System, Arizona, U.S.
US manufacturer Western Window Systems is relying on insulating profiles from insulbar in its new product line for large sash windows and sliding doors. Thanks to insulbar this Series 7000, which has been developed specially for the US American market, stands out for particularly low U values and a "hurricane impact" certification.
Picture courtesy: Western Window Systems

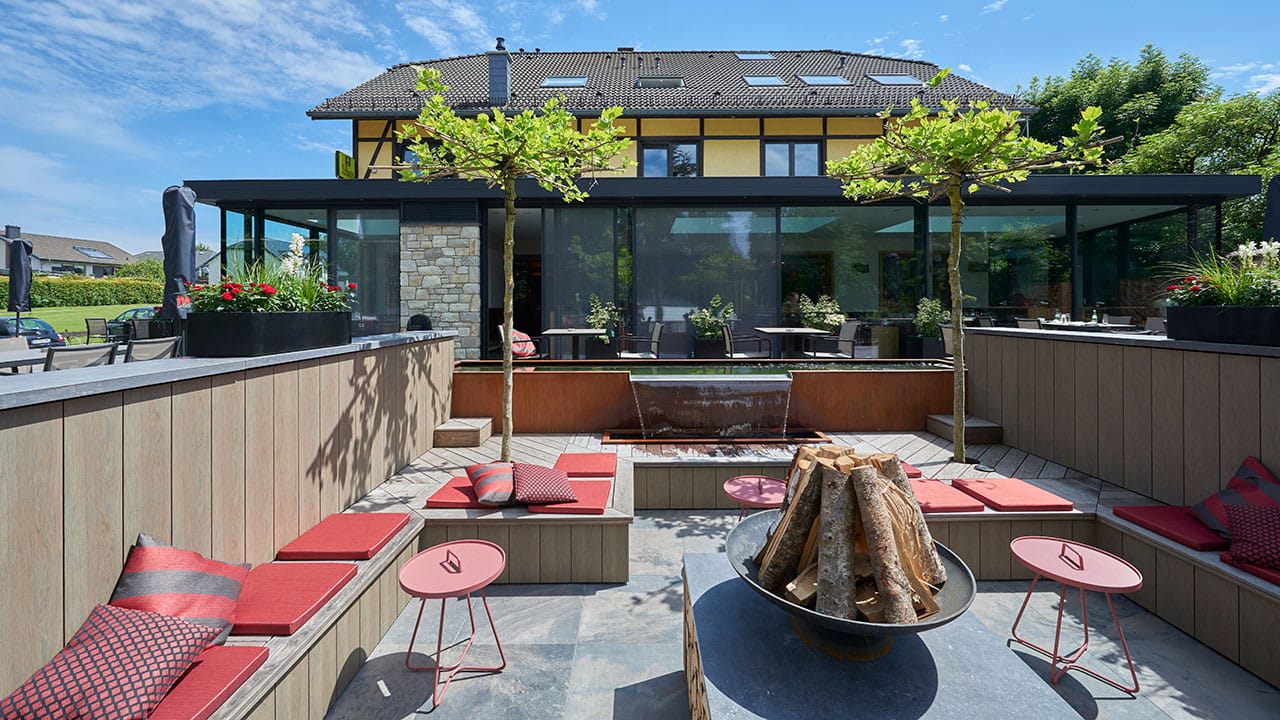

Hotel Bütgenbacher Hof, Bütgenbach, Belgium
The 4-star Silence Hotel offers the perfect location for relaxation and recuperation, with a cosy ambience in the heart of East Belgium’s unspoilt natural landscape. As part of an extensive renovation project, the restaurant area has been improved with a new conservatory extension, transforming it into an attractive and inviting dining space. Room-height fixed glazing and sliding doors from Keller AG create a light-flooded, warm ambience for guests. insulbar insulating profiles keep the sun's rays out in summer and keep the heat in during the winter months.
Picture courtesy: Keller AG

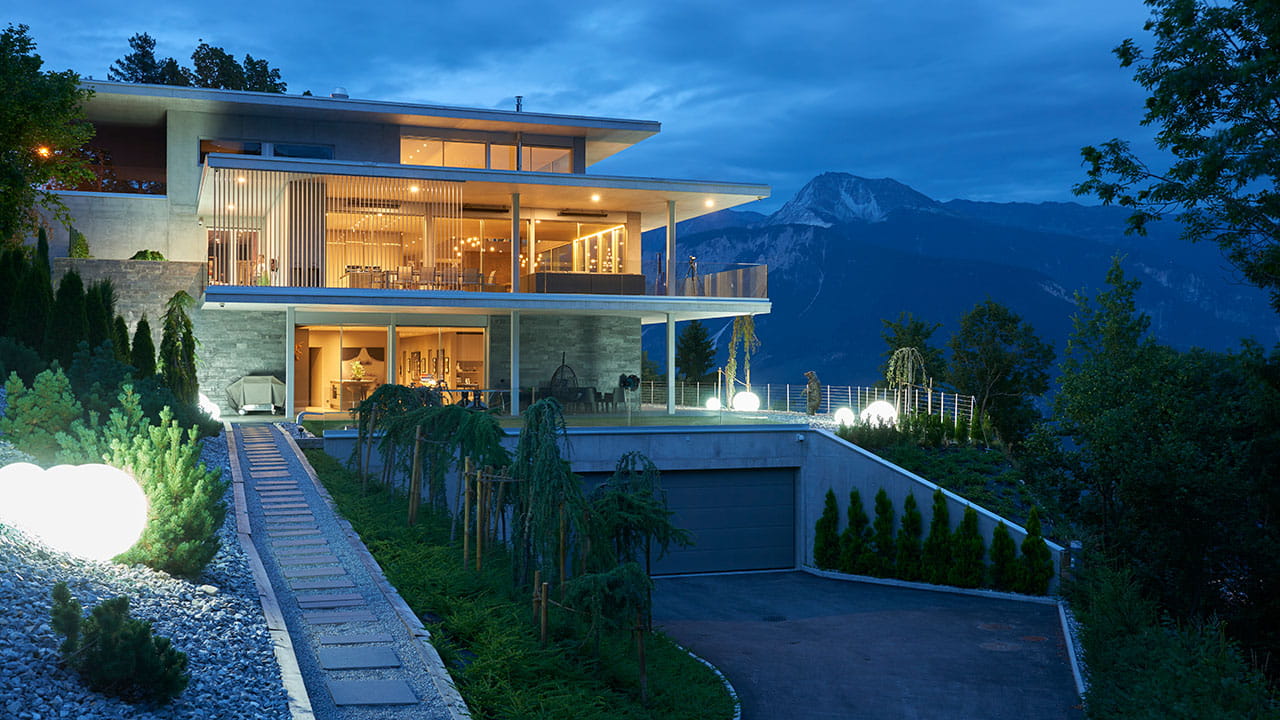

Villa Wallis, Rhonetal, Switzerland
The easterly, southerly and westerly façades of this high-end villa comprise filigree fixed window and sliding door systems from Keller AG. The room-height frameless glazing design is practically devoid of thresholds, affording spectacular panoramic views of the surrounding countryside. Due to the use of highly insulated window systems equipped with insulbar insulating profiles, this villa is fully in line with the latest energy efficiency standards.
Architect: Renggli Architects, www.renggli-architectes.ch
Picture courtesy: Keller AG
